Description
Application:
• Measurement of temperatures in closed pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil.
• Field of application: up to 600°C, max. 50bar and media velocities of up to 25 m/sec
• Typically applied in:
– Processing plants
– Power plants
– District heating, energy distribution
Properties:

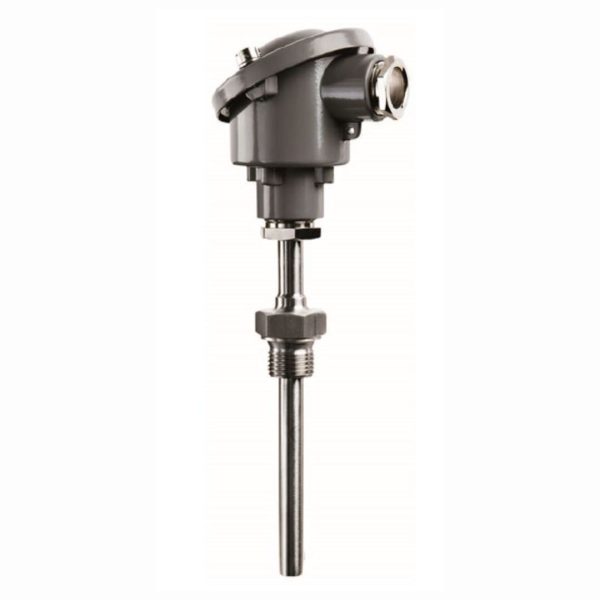

• Pt100 or Pt1000 resistance thermometer in accordance with IEC 60751
• Mechanical and thermal stress in accordance with DIN 43772
• Process attachment: Welded
• Measuring insert: Interchangeable, short reaction time
• Outer protective sheath: Stainless acid-proof steel
• Modular construction and standard length minimizes the number of spare parts
• Can be delivered with head mounted transmitter
